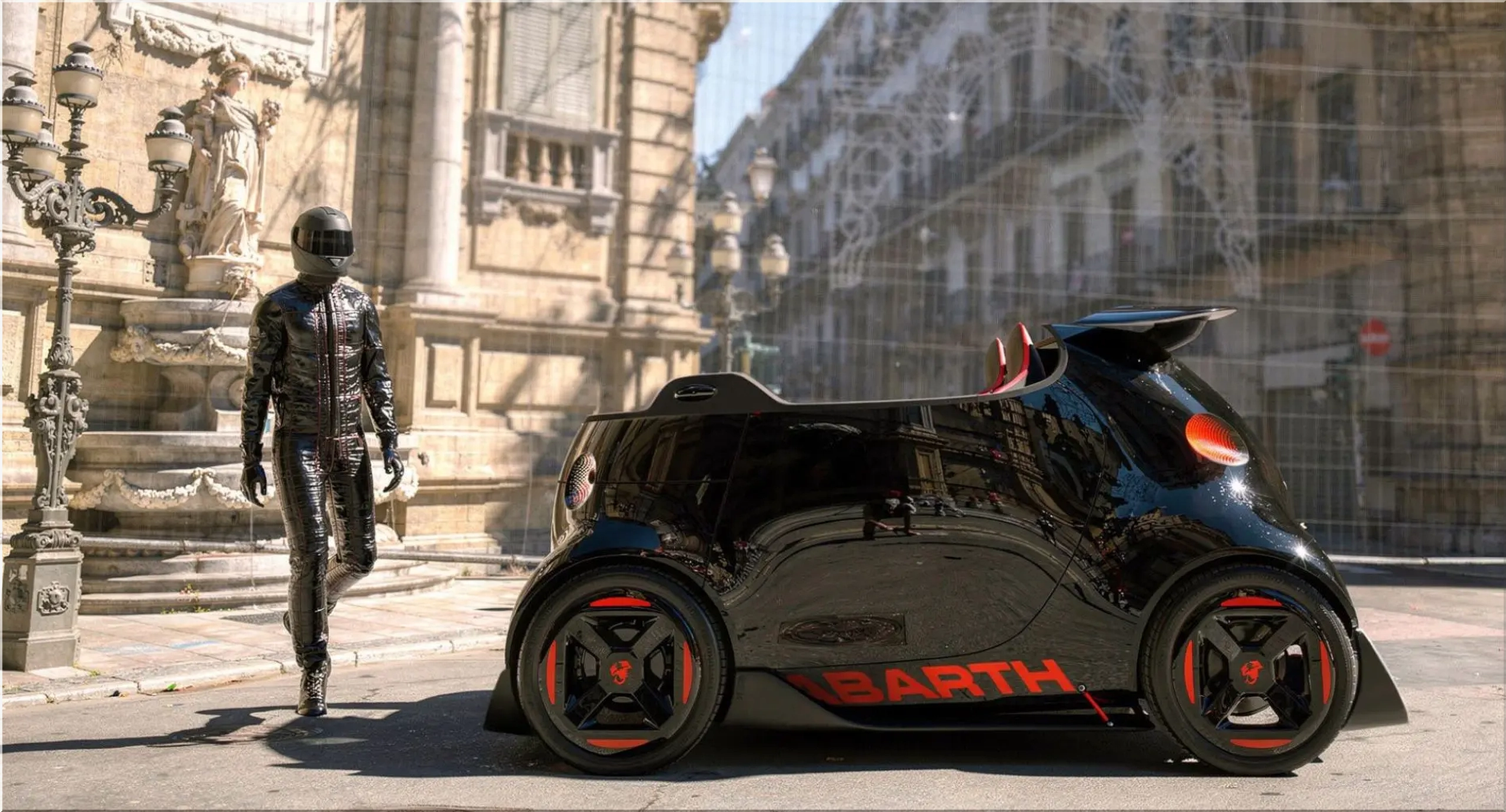

The Fiat Topolino XS sits in an awkward spot that designers love and product planners fear. It looks feasible, it reads simple, and it solves a real urban problem: space. Yet it remains a design concept, not a production vehicle.
That matters because the electric microcar segment already runs on tight constraints. When you pack a cabin, battery, crash structure, lighting, HVAC, and compliance into a footprint smaller than most UTVs, every millimeter turns into a cost decision. The Fiat Topolino XS concept attacks that reality with a blunt idea: keep the base vehicle tiny, then change the body to fit the day.
In addition, this concept leans into a question mainstream EVs still dodge: do city commuters want one car with every feature, or a small urban EV that adapts like gear?
What the Fiat Topolino XS Concept Actually Claims
The Topolino XS concept, created by designer Wini Camacho, frames itself around three core promises:

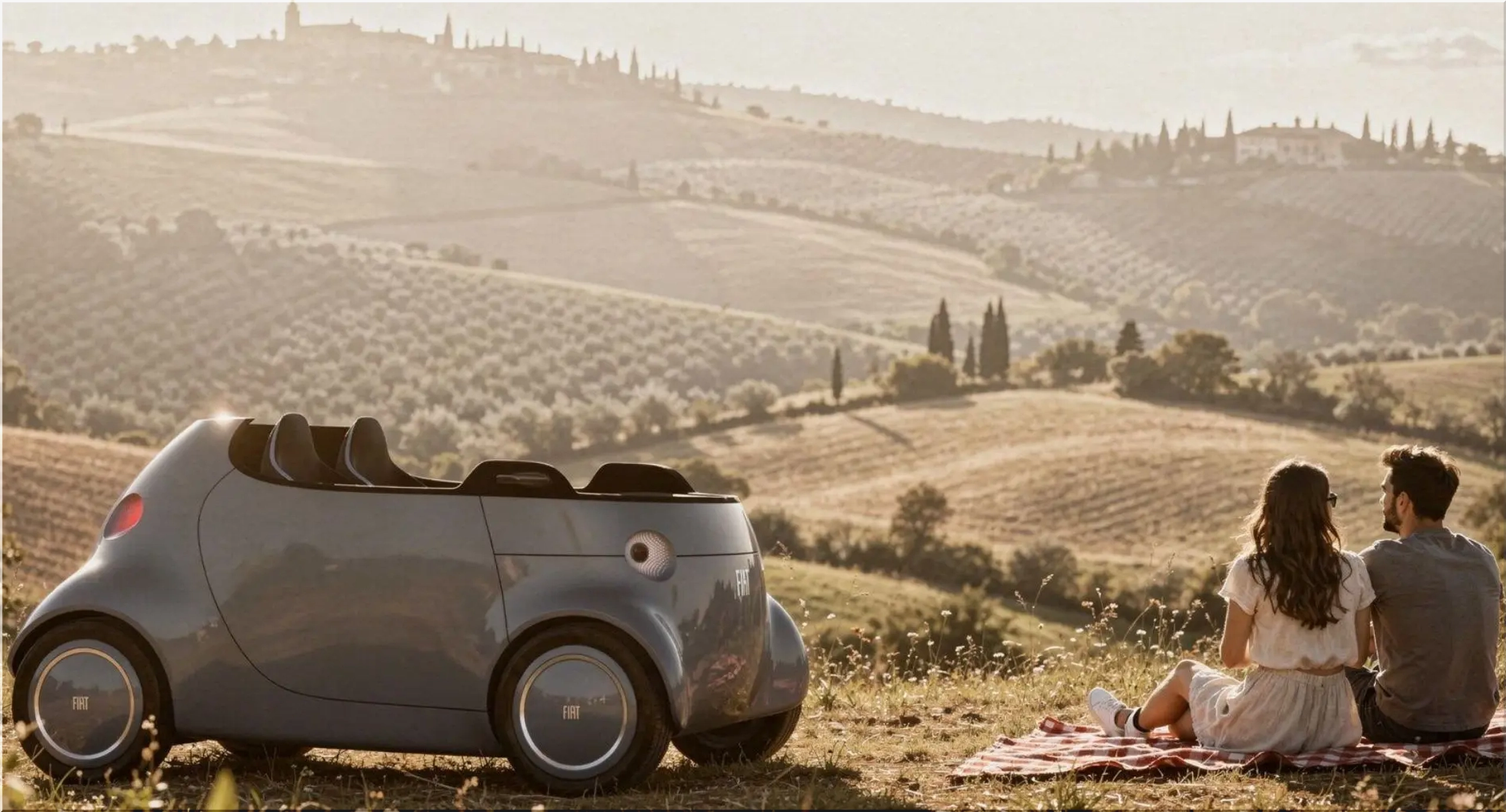

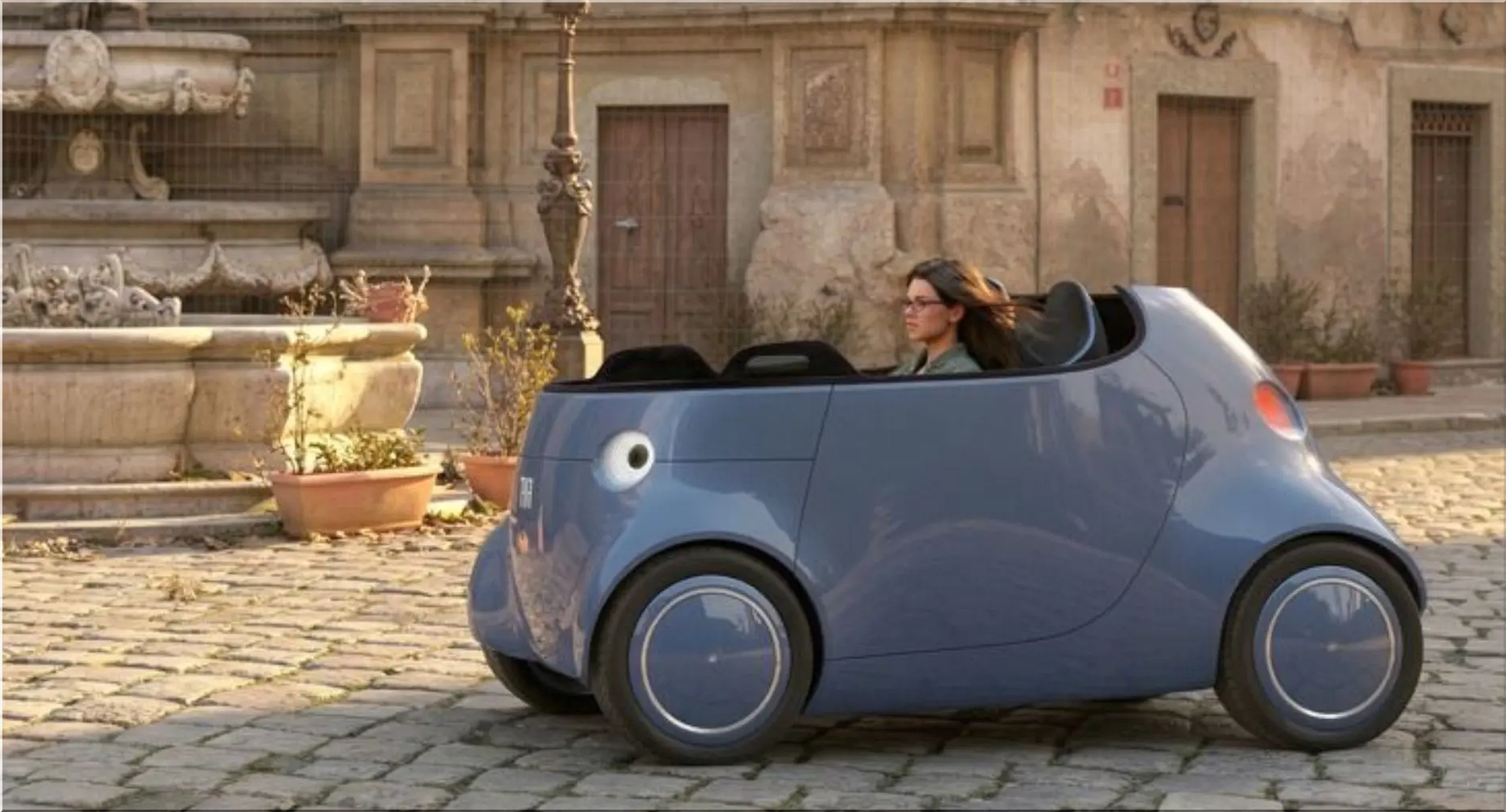

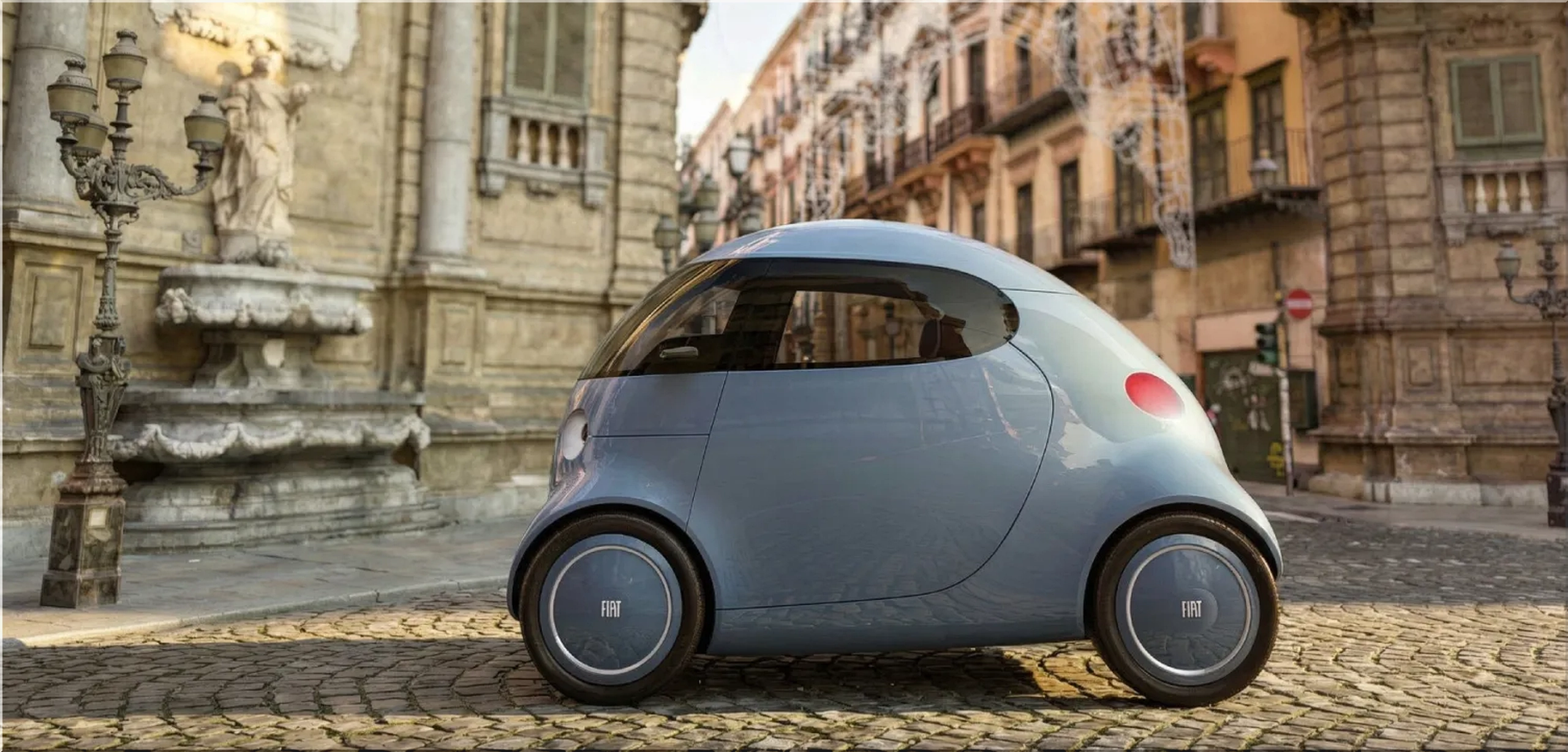

- Three-in-one modular body that can shift between coupe, targa-style open top, and full roofless roadster configuration
- A hyper-compact exterior footprint at roughly 2.4 m long and 1.4 m wide (about 94.5 in by 55.1 in)
- Simplified controls paired with expressive lighting, including micro-LED lighting concepts front and rear
Specifically, the modular approach focuses on removing major glass and roof elements rather than relying on complex retractable mechanisms. That decision keeps parts count down, reduces parasitic mass, and removes the packaging penalty of storing roof panels inside the car.
Consequently, the XS reads less like a convertible and more like a configurable urban tool: one chassis, multiple use cases, no extra parking footprint.
Dimensions and Packaging: Small on Paper, Hard in the Real World
The concept claims about 2,400 mm in overall length. That puts it roughly 6.2 in shorter than the production Fiat Topolino sold in some European markets at 2,558 mm long, while keeping the same published width of 1,400 mm.
That gap sounds minor. It is not. On a microcar, 158 mm (6.2 in) can represent:
- A full seatback angle change
- A larger rear crush zone
- A thicker door structure for side-impact targets
- Or extra battery module volume
From an expert perspective, the best takeaway is simple: the XS concept likely assumes a purpose-built micro platform, while the production Fiat Topolino already works inside existing regulatory boxes and supplier constraints.
Fiat Topolino XS Concept vs Production Fiat Topolino (Reference Spec)
| Spec (units) | Fiat Topolino XS (concept claim) | Fiat Topolino (production reference) |
|---|---|---|
| Overall length | 2,400 mm (94.5 in) | 2,558 mm (100.7 in) |
| Overall width | 1,400 mm (55.1 in) | 1,400 mm (55.1 in) |
| Overall height | Not published | 1,528 mm (60.2 in) |
| Cargo volume | Concept accessory racks shown | 63 L (2.22 cu ft) |
| Battery capacity | Not published | 5.4 kWh |
| Charging hardware | Home charging implied | 2.3 kW AC onboard |
| System voltage | Not published | 48 V (peak 58 V) |
| Rated output | Not published | 6 hp |
| Rated range | Not published | 75 km (46.6 mi) |
Pro-Tip: When a concept avoids battery size and output numbers, treat the design as a packaging study, not a validated vehicle program. Designers can draw any door seam. Engineers still have to route the HV harness, cooling lines, and impact load paths.
The Modular Body: Why Removing Roof, Glass, and Windshield Changes Everything
The XS concept centers on a removable roof and removable glazing elements. That choice forces three engineering realities:
- Body stiffness drops fast
- Wind management becomes a safety item
- Water sealing becomes a cost item
A conventional convertible hides reinforcement in rocker panels, crossmembers, and the windshield frame. A microcar has less structure to work with, and less mass budget to spend on reinforcement. If the windshield becomes removable, the concept must either:
- Keep a fixed structural hoop behind the dash, or
- Use an integrated exoskeleton-like ring structure around the cabin
By comparison, the simplest scalable solution would keep a fixed safety cell with bolt-on outer panels. That approach matches what the concept visually implies: a smooth, bulb-like shell with minimal cut lines.
How a 3-in-1 Body Could Work Without Drama
A realistic production path would likely split the car into three zones:
- Fixed safety tub: floor, rockers, primary side structure, seat mounts
- Front module: cowl, lighting, front crash structure, bolt-on fascia
- Upper module: roof panel(s), windshield surround, side window frames
That architecture makes the modular body a parts swap, not a mechanism. It keeps weight and cost down because you avoid motors, rails, and multi-link roof kinematics.
Consequently, the XS concept points to a manufacturing logic that could scale: one painted safety cell, multiple top kits.
